UAEndpointSelectionPolicy Class

Determines how the UA client chooses the endpoint from the endpoints provided by the UA server.

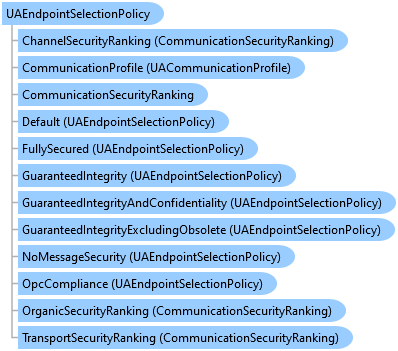

Object Model

Syntax

Visual Basic
C#
C++/CLI

'Declaration

<ComDefaultInterfaceAttribute(OpcLabs.EasyOpc.UA.Engine.ComTypes._UAEndpointSelectionPolicy)>
<ComVisibleAttribute(True)>
<GuidAttribute("ED7D4313-690E-4241-B95D-754FD7D283FF")>
<TypeConverterAttribute(OpcLabs.EasyOpc.UA.Implementation.UAEndpointSelectionPolicyConverter)>
<ValueControlAttribute("OpcLabs.EasyOpc.UA.Forms.Implementation.UAEndpointSelectionPolicyBasicControl, OpcLabs.EasyOpcForms, Version=5.84.192.1, Culture=neutral, PublicKeyToken=6faddca41dacb409", PageId=100)>
<CLSCompliantAttribute(True)>
<SerializableAttribute()>
Public NotInheritable Class UAEndpointSelectionPolicy
   Inherits OpcLabs.BaseLib.Parameters
   Implements LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.BaseLib.ComTypes._Parameters, OpcLabs.EasyOpc.UA.Engine.ComTypes._UAEndpointSelectionPolicy, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable

'Usage

Dim instance As UAEndpointSelectionPolicy

[ComDefaultInterface(OpcLabs.EasyOpc.UA.Engine.ComTypes._UAEndpointSelectionPolicy)]
[ComVisible(true)]
[Guid("ED7D4313-690E-4241-B95D-754FD7D283FF")]
[TypeConverter(OpcLabs.EasyOpc.UA.Implementation.UAEndpointSelectionPolicyConverter)]
[ValueControl("OpcLabs.EasyOpc.UA.Forms.Implementation.UAEndpointSelectionPolicyBasicControl, OpcLabs.EasyOpcForms, Version=5.84.192.1, Culture=neutral, PublicKeyToken=6faddca41dacb409", PageId=100)]
[CLSCompliant(true)]
[Serializable()]
public sealed class UAEndpointSelectionPolicy : OpcLabs.BaseLib.Parameters, LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.BaseLib.ComTypes._Parameters, OpcLabs.EasyOpc.UA.Engine.ComTypes._UAEndpointSelectionPolicy, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable

[ComDefaultInterface(OpcLabs.EasyOpc.UA.Engine.ComTypes._UAEndpointSelectionPolicy)]
[ComVisible(true)]
[Guid("ED7D4313-690E-4241-B95D-754FD7D283FF")]
[TypeConverter(OpcLabs.EasyOpc.UA.Implementation.UAEndpointSelectionPolicyConverter)]
[ValueControl("OpcLabs.EasyOpc.UA.Forms.Implementation.UAEndpointSelectionPolicyBasicControl, OpcLabs.EasyOpcForms, Version=5.84.192.1, Culture=neutral, PublicKeyToken=6faddca41dacb409", PageId=100)]
[CLSCompliant(true)]
[Serializable()]
public ref class UAEndpointSelectionPolicy sealed : public OpcLabs.BaseLib.Parameters, LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.BaseLib.ComTypes._Parameters, OpcLabs.EasyOpc.UA.Engine.ComTypes._UAEndpointSelectionPolicy, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable

Remarks

In order to obtain or modify these parameters, in the default state (when $(memberUrl equals to false), access UAClientSessionParameters.EndpointSelectionPolicy property of UAClientAdaptableParameters.SessionParameters property of static $(memberUrl. If you have set $(memberUrl to true, you need to access UAClientSessionParameters.EndpointSelectionPolicy property of UAClientAdaptableParameters.SessionParameters property of $(memberUrl.

Alternatively, you can override the endpoint selection policy for a specific endpoint by setting it to a non-null value in OpcLabs.EasyOpc.UA.UAEndpointDescriptor.EndpointSelectionPolicy.

There are implicit conversions to this type from:

UAMessageSecurityModes

Inheritance Hierarchy

System.Object
   OpcLabs.BaseLib.Object2
      OpcLabs.BaseLib.Info
         OpcLabs.BaseLib.Parameters
            OpcLabs.EasyOpc.UA.Engine.UAEndpointSelectionPolicy

Requirements

Target Platforms: .NET Framework: Windows 10 (selected versions), Windows 11 (selected versions), Windows Server 2016, Windows Server 2022; .NET: Linux, macOS, Microsoft Windows

Reference

UAEndpointSelectionPolicy Members
OpcLabs.EasyOpc.UA.Engine Namespace
