QuickOPC User's Guide and Reference
_UAClientServerApplicationParameters Interface
Members  Example



OpcLabs.EasyOpcUA Assembly > OpcLabs.EasyOpc.UA.Engine.ComTypes Namespace : _UAClientServerApplicationParameters Interface
Exposes OpcLabs.EasyOpc.UA.Engine.UAClientServerApplicationParameters to COM clients.

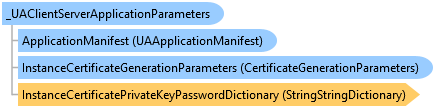

Object Model
_UAClientServerApplicationParameters InterfaceUAApplicationManifest ClassCertificateGenerationParameters ClassStringStringDictionary Class
Syntax
'Declaration

<CLSCompliantAttribute(False)>
<ComVisibleAttribute(True)>
<GuidAttribute("4EBB9E50-E292-4D01-A182-8345BC293D21")>
<InterfaceTypeAttribute(ComInterfaceType.InterfaceIsDual)>
Public Interface _UAClientServerApplicationParameters
'Usage

Dim instance As _UAClientServerApplicationParameters
[CLSCompliant(false)]
[ComVisible(true)]
[Guid("4EBB9E50-E292-4D01-A182-8345BC293D21")]
[InterfaceType(ComInterfaceType.InterfaceIsDual)]
public interface _UAClientServerApplicationParameters
[CLSCompliant(false)]
[ComVisible(true)]
[Guid("4EBB9E50-E292-4D01-A182-8345BC293D21")]
[InterfaceType(ComInterfaceType.InterfaceIsDual)]
public interface class _UAClientServerApplicationParameters
Example

COM

// This example demonstrates how to set the application name for the client certificate.

type
  TClientManagementEventHandlers103 = class
    procedure OnLogEntry(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _LogEntryEventArgs);
  end;

// Event handler for the LogEntry event.
// Print the loggable entry containing client certificate parameters.
procedure TClientManagementEventHandlers103.OnLogEntry(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _LogEntryEventArgs);
begin
  if eventArgs.EventId = 161 then
      WriteLn(eventArgs.ToString);
end;

class procedure ApplicationName.Main;
var
  Application: TEasyUAApplication;
  Client: OpcLabs_EasyOpcUA_TLB._EasyUAClient;
  ClientManagement: TEasyUAClientManagement;
  ClientManagementEventHandlers: TClientManagementEventHandlers103;
  Value: OleVariant;
begin
  // The configuration object allows access to static behavior - here, the
  // shared LogEntry event.
  ClientManagement := TEasyUAClientManagement.Create(nil);
  ClientManagementEventHandlers := TClientManagementEventHandlers103.Create;
  ClientManagement.OnLogEntry := ClientManagementEventHandlers.OnLogEntry;
  ClientManagement.Connect;

  // Obtain the application interface.
  Application := TEasyUAApplication.Create(nil);

  try
    // Set the application name, which determines the subject of the client certificate.
    // Note that this only works once in each host process.
    Application.ApplicationParameters.ApplicationManifest.ApplicationName :=
      'QuickOPC - Delphi example application';

    // Do something - invoke an OPC read, to trigger some loggable entries.
    Client := CoEasyUAClient.Create;
    try
      Value := Client.ReadValue(
      //'http://opcua.demo-this.com:51211/UA/SampleServer',
      //'https://opcua.demo-this.com:51212/UA/SampleServer/',
      'opc.tcp://opcua.demo-this.com:51210/UA/SampleServer',
      'nsu=http://test.org/UA/Data/ ;i=10853');
    except
      on E: EOleException do
      begin
        WriteLn(Format('*** Failure: %s', [E.GetBaseException.Message]));
      end;
    end;

    // The certificate will be located or created in a directory similar to:
    // C:\ProgramData\OPC Foundation\CertificateStores\MachineDefault\certs
    // and its subject will be as given by the application name.

    WriteLn('Processing log entry events for 10 seconds...');
    PumpSleep(10*1000);

    WriteLn('Finished...');
  finally
    FreeAndNil(Application);
    FreeAndNil(ClientManagement);
    FreeAndNil(ClientManagementEventHandlers);
  end;
end;
// This example demonstrates how to set the application name for the client certificate.

class ClientManagementEvents {
    // Event handler for the LogEntry event.
    // Print the loggable entry containing client certificate parameters.
    function LogEntry($Sender, $E)
    {
        if ($E->EventId == 161)
            printf("%s\n", $E);
    }
}

// The management object allows access to static behavior - here, the
// shared LogEntry event.
$ClientManagement = new COM("OpcLabs.EasyOpc.UA.EasyUAClientManagement");
$ClientManagementEvents = new ClientManagementEvents();
com_event_sink($ClientManagement, $ClientManagementEvents, "DEasyUAClientManagementEvents");

// Obtain the application interface.
$Application = new COM("OpcLabs.EasyOpc.UA.Application.EasyUAApplication");

// Set the application name, which determines the subject of the client certificate.
// Note that this only works once in each host process.
$Application->ApplicationParameters->ApplicationManifest->ApplicationName = "QuickOPC - PHP example application";

// Do something - invoke an OPC read, to trigger some loggable entries.
$Client = new COM("OpcLabs.EasyOpc.UA.EasyUAClient");
try
{
    $value = $Client->ReadValue(
        //"http://opcua.demo-this.com:51211/UA/SampleServer",
        "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer",
        "nsu=http://test.org/UA/Data/ ;i=10853");
}
catch (com_exception $e)
{
    printf("*** Failure: %s\n", $e->getMessage());
}

// The certificate will be located or created in a directory similar to:
// C:\ProgramData\OPC Foundation\CertificateStores\MachineDefault\certs
// and its subject will be as given by the application name.

printf("Processing log entry events for 10 seconds...");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 10);

printf("Finished.\n");
Rem This example demonstrates how to set the application name for the client certificate.

Private Sub ApplicationName_Main_Command_Click()
    OutputText = ""

    ' Obtain the application interface
    Dim Application As New EasyUAApplication

    ' Set the application name, which determines the subject of the client certificate.
    ' Note that this only works once in each host process.
    Application.ApplicationParameters.ApplicationManifest.applicationName = "QuickOPC - VB6 example application"

    ' Do something - invoke an OPC read, to trigger some loggable entries.
    Dim client As New EasyUAClient
    On Error Resume Next
    Dim value As Variant
    value = client.ReadValue("opc.tcp://opcua.demo-this.com:51210/UA/SampleServer", "nsu=http://test.org/UA/Data/ ;i=10853")
    If Err.Number <> 0 Then
        OutputText = OutputText & "*** Failure: " & Err.Source & ": " & Err.Description & vbCrLf
        Exit Sub
    End If
    On Error GoTo 0

    ' The certificate will be located or created in a directory similar to:
    ' C:\ProgramData\OPC Foundation\CertificateStores\MachineDefault\certs
    ' and its subject will be as given by the application name.

    OutputText = OutputText & "Processing log entry events for 10 seconds..." & vbCrLf
    Pause 10000

    Set Application = Nothing
    OutputText = OutputText & "Finished..." & vbCrLf
End Sub
' Event handler for the LogEntry event. It simply prints out the event.
Private Sub ClientManagement1_LogEntry(ByVal sender As Variant, ByVal eventArgs As OpcLabs_BaseLib.LogEntryEventArgs)
    If eventArgs.eventId = 161 Then
        OutputText = OutputText & eventArgs & vbCrLf
    End If
End Sub
Rem This example demonstrates how to set the application name for the client certificate.

Option Explicit

' The management object allows access to static behavior.
WScript.Echo "Obtaining the client management object..."
Dim ClientManagement: Set ClientManagement = CreateObject("OpcLabs.EasyOpc.UA.EasyUAClientManagement")
WScript.ConnectObject ClientManagement, "ClientManagement_"

WScript.Echo "Obtaining the application interface..."
Dim Application: Set Application = CreateObject("OpcLabs.EasyOpc.UA.Application.EasyUAApplication")

' Set the application name, which determines the subject of the client certificate.
' Note that this only works once in each host process.
WScript.Echo "Setting the application name..."
Application.ApplicationParameters.ApplicationManifest.ApplicationName = "QuickOPC - VBScript example application"

WScript.Echo "Creating a client object..."
Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.UA.EasyUAClient")

' Do something - invoke an OPC read, to trigger some loggable entries.
WScript.Echo "Reading a value..."
On Error Resume Next
Dim value: value = Client.ReadValue("opc.tcp://opcua.demo-this.com:51210/UA/SampleServer", "nsu=http://test.org/UA/Data/ ;i=10853")
If Err.Number <> 0 Then
    WScript.Echo "*** Failure: " & Err.Source & ": " & Err.Description
    WScript.Quit
End If
On Error Goto 0

' The certificate will be located or created in a directory similar to:
' C:\Users\All Users\OPC Foundation\CertificateStores\UA Applications\certs\
' and its subject will be as given by the application name.

WScript.Echo "Processing log entry events for 10 seconds..."
WScript.Sleep 10*1000

WScript.Echo "Finished."



' Event handler for the LogEntry event.
' Print the loggable entry containing client certificate parameters.
Sub ClientManagement_LogEntry(Sender, e)
    If e.EventId = 161 Then WScript.Echo e
End Sub
Requirements

Target Platforms: .NET Framework: Windows 10 (selected versions), Windows 11 (selected versions), Windows Server 2016, Windows Server 2022; .NET: Linux, macOS, Microsoft Windows
