IEasySparkplugEdgeNode Interface

Represents an interface for a Sparkplug edge node, including management of the connection and interaction with the Sparkplug system. This interface provides properties and methods to configure and control the edge node and its devices.

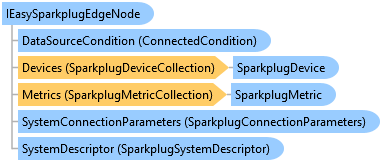

Object Model

Syntax

Visual Basic
C#
C++/CLI

'Declaration

<ExceptionContractAnnotationAttribute(True)>
<CLSCompliantAttribute(True)>
Public Interface IEasySparkplugEdgeNode
   Inherits OpcLabs.BaseLib.ComponentModel.IReadOnlyStartable, OpcLabs.BaseLib.ComponentModel.IStartableEvents, IEasySparkplugNotificationEvents, ISparkplugMetricEvents, ISparkplugProducer, ISparkplugProducerEvents, ISparkplugSystemConnectionMonitoring, System.IDisposable, System.IServiceProvider

'Usage

Dim instance As IEasySparkplugEdgeNode

[ExceptionContractAnnotation(true)]
[CLSCompliant(true)]
public interface IEasySparkplugEdgeNode : OpcLabs.BaseLib.ComponentModel.IReadOnlyStartable, OpcLabs.BaseLib.ComponentModel.IStartableEvents, IEasySparkplugNotificationEvents, ISparkplugMetricEvents, ISparkplugProducer, ISparkplugProducerEvents, ISparkplugSystemConnectionMonitoring, System.IDisposable, System.IServiceProvider

[ExceptionContractAnnotation(true)]
[CLSCompliant(true)]
public interface class IEasySparkplugEdgeNode : public OpcLabs.BaseLib.ComponentModel.IReadOnlyStartable, OpcLabs.BaseLib.ComponentModel.IStartableEvents, IEasySparkplugNotificationEvents, ISparkplugMetricEvents, ISparkplugProducer, ISparkplugProducerEvents, ISparkplugSystemConnectionMonitoring, System.IDisposable, System.IServiceProvider

Remarks

This interface extends ISparkplugProducer to provide additional functionality specific to Sparkplug edge nodes.

The Sparkplug edge node ID is stored in the EdgeNodeId property. The collection of Sparkplug metrics that this edge node publishes is contained in the ISparkplugProducer.Metrics property of the edge node. You can add or remove your metrics in this collection.

Sparkplug is a trademark of Eclipse Foundation, Inc. "MQTT" is a trademark of the OASIS Open standards consortium. Other related terms are trademarks of their respective owners. Any use of these terms on this site is for descriptive purposes only and does not imply any sponsorship, endorsement or affiliation.

Requirements

Target Platforms: .NET Framework: Windows 10 (selected versions), Windows 11 (selected versions), Windows Server 2016, Windows Server 2022; .NET: Linux, macOS, Microsoft Windows

Reference

IEasySparkplugEdgeNode Members
OpcLabs.EasySparkplug Namespace
