EasyUASubscriber Class
Members  Example



OpcLabs.EasyOpcUA Assembly > OpcLabs.EasyOpc.UA.PubSub Namespace : EasyUASubscriber Class

The EasyUASubscriber object is the main object that allows simple access to OPC-UA PubSub publishers.

The core members of this object come from the IEasyUASubscriber interface.

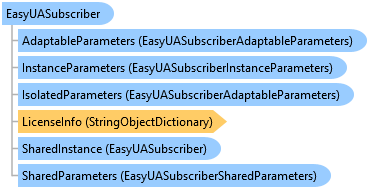

Object Model
EasyUASubscriber ClassEasyUASubscriberAdaptableParameters ClassEasyUASubscriberInstanceParameters ClassEasyUASubscriberAdaptableParameters ClassStringObjectDictionary ClassEasyUASubscriber ClassEasyUASubscriberSharedParameters Class
Syntax
'Declaration

<CLSCompliantAttribute(True)>
<ComDefaultInterfaceAttribute(OpcLabs.EasyOpc.UA.PubSub.ComTypes._EasyUASubscriber)>
<ComSourceInterfacesAttribute(OpcLabs.EasyOpc.UA.PubSub.ComTypes.DEasyUASubscriberEvents)>
<ComVisibleAttribute(True)>
<GuidAttribute("EDC1F10E-3FC6-4604-9BC6-4FFF579D271A")>
<TypeConverterAttribute(System.ComponentModel.ExpandableObjectConverter)>
<DesignerCategoryAttribute("Component")>
<SerializableAttribute()>
Public NotInheritable Class EasyUASubscriber
   Inherits OpcLabs.BaseLib.Widgets.NotifyingWidget
   Implements OpcLabs.BaseLib.Licensing.ILicensingContextHolder, OpcLabs.BaseLib.Widgets.ComTypes._NotifyingWidget, OpcLabs.BaseLib.Widgets.ComTypes._Widget, OpcLabs.BaseLib.Widgets.IWidget, OpcLabs.EasyOpc.UA.PubSub.ComTypes._EasyUASubscriber, IEasyUASubscriber, IEasyUASubscriberEnqueuing, IEasyUASubscriberSettings, System.ComponentModel.IComponent, System.ICloneable, System.IDisposable, System.IServiceProvider, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
'Usage

Dim instance As EasyUASubscriber
[CLSCompliant(true)]
[ComDefaultInterface(OpcLabs.EasyOpc.UA.PubSub.ComTypes._EasyUASubscriber)]
[ComSourceInterfaces(OpcLabs.EasyOpc.UA.PubSub.ComTypes.DEasyUASubscriberEvents)]
[ComVisible(true)]
[Guid("EDC1F10E-3FC6-4604-9BC6-4FFF579D271A")]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
[DesignerCategory("Component")]
[Serializable()]
public sealed class EasyUASubscriber : OpcLabs.BaseLib.Widgets.NotifyingWidget, OpcLabs.BaseLib.Licensing.ILicensingContextHolder, OpcLabs.BaseLib.Widgets.ComTypes._NotifyingWidget, OpcLabs.BaseLib.Widgets.ComTypes._Widget, OpcLabs.BaseLib.Widgets.IWidget, OpcLabs.EasyOpc.UA.PubSub.ComTypes._EasyUASubscriber, IEasyUASubscriber, IEasyUASubscriberEnqueuing, IEasyUASubscriberSettings, System.ComponentModel.IComponent, System.ICloneable, System.IDisposable, System.IServiceProvider, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
[CLSCompliant(true)]
[ComDefaultInterface(OpcLabs.EasyOpc.UA.PubSub.ComTypes._EasyUASubscriber)]
[ComSourceInterfaces(OpcLabs.EasyOpc.UA.PubSub.ComTypes.DEasyUASubscriberEvents)]
[ComVisible(true)]
[Guid("EDC1F10E-3FC6-4604-9BC6-4FFF579D271A")]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
[DesignerCategory("Component")]
[Serializable()]
public ref class EasyUASubscriber sealed : public OpcLabs.BaseLib.Widgets.NotifyingWidget, OpcLabs.BaseLib.Licensing.ILicensingContextHolder, OpcLabs.BaseLib.Widgets.ComTypes._NotifyingWidget, OpcLabs.BaseLib.Widgets.ComTypes._Widget, OpcLabs.BaseLib.Widgets.IWidget, OpcLabs.EasyOpc.UA.PubSub.ComTypes._EasyUASubscriber, IEasyUASubscriber, IEasyUASubscriberEnqueuing, IEasyUASubscriberSettings, System.ComponentModel.IComponent, System.ICloneable, System.IDisposable, System.IServiceProvider, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
Remarks



This chapter gives guidance in implementing common tasks when dealing with data made available over OPC UA PubSub. You achieve these tasks mainly by calling methods on the EasyUASubscriber object. Depending on what you need, see:

Subscribing to Information (OPC UA PubSub)
The features discussed here, or some of them, may not be available in all editions of the product. Check the Product Editions page for differences between the editions. The trial license has all features enabled (and is limited in period for which it provides valid data), but licenses for specific commercial editions may have functionality limitations.

OPC UA PubSub is a large specification, and not all its parts are commonly used and have the same significance. QuickOPC implements the parts that are relevant for its purpose. Some parts OPC UA PubSub functionality is not available in QuickOPC. The parts that are not (yet) available include:

Most of the OPC UA PubSub examples work with the OPC UA Demo Publisher that is installed with the product, or can be downloaded separately. It supports Windows, Linux and macOS.



Example
// This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection with UDP UADP mapping.
//
// In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
// http://kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

using System;
using System.Collections.Generic;
using System.Threading;
using OpcLabs.EasyOpc.UA.PubSub;
using OpcLabs.EasyOpc.UA.PubSub.OperationModel;

namespace UADocExamples.PubSub._EasyUASubscriber
{
    partial class SubscribeDataSet
    {
        public static void Main1()
        {
            // Define the PubSub connection we will work with. Uses implicit conversion from a string.
            UAPubSubConnectionDescriptor pubSubConnectionDescriptor = "opc.udp://239.0.0.1";
            // In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
            // the statement below. Your actual interface name may differ, of course.
            //pubSubConnectionDescriptor.ResourceAddress.InterfaceName = "Ethernet";

            // Instantiate the subscriber object and hook events.
            var subscriber = new EasyUASubscriber();
            subscriber.DataSetMessage += subscriber_DataSetMessage;

            Console.WriteLine("Subscribing...");
            subscriber.SubscribeDataSet(pubSubConnectionDescriptor);

            Console.WriteLine("Processing dataset message events for 20 seconds...");
            Thread.Sleep(20 * 1000);

            Console.WriteLine("Unsubscribing...");
            subscriber.UnsubscribeAllDataSets();

            Console.WriteLine("Waiting for 1 second...");
            // Unsubscribe operation is asynchronous, messages may still come for a short while.
            Thread.Sleep(1 * 1000);

            Console.WriteLine("Finished.");
        }

        static void subscriber_DataSetMessage(object sender, EasyUADataSetMessageEventArgs e)
        {
            // Display the dataset.
            if (e.Succeeded)
            {
                // An event with null DataSetData just indicates a successful connection.
                if (!(e.DataSetData is null))
                {
                    Console.WriteLine();
                    Console.WriteLine($"Dataset data: {e.DataSetData}");
                    foreach (KeyValuePair<string, UADataSetFieldData> pair in e.DataSetData.FieldDataDictionary)
                        Console.WriteLine(pair);
                }
            }
            else
            {
                Console.WriteLine();
                Console.WriteLine($"*** Failure: {e.ErrorMessageBrief}");
            }
        }


        // Example output (truncated):
        //
        //Subscribing...
        //Processing dataset message events for 20 seconds...
        //
        //Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
        //[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //
        //Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
        //[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //...
    }
}
# This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection with UDP UADP mapping.
#
# In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
# http:#kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

#requires -Version 5.1
using namespace OpcLabs.BaseLib.Networking
using namespace OpcLabs.EasyOpc.UA
using namespace OpcLabs.EasyOpc.UA.PubSub
using namespace OpcLabs.EasyOpc.UA.PubSub.OperationModel

# The path below assumes that the current directory is [ProductDir]/Examples-NET/PowerShell/Windows .
Add-Type -Path "../../../Assemblies/net47/OpcLabs.EasyOpcUA.dll"

# Define the PubSub connection we will work with. Uses implicit conversion from a string.
[UAPubSubConnectionDescriptor]$pubSubConnectionDescriptor = [ResourceAddress]"opc.udp://239.0.0.1"
# In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
# the statement below. Your actual interface name may differ, of course.
#$pubSubConnectionDescriptor.ResourceAddress.InterfaceName = "Ethernet"

# Instantiate the subscriber object.
$subscriber = New-Object EasyUASubscriber

# Event notification handler
Register-ObjectEvent -InputObject $subscriber -EventName DataSetMessage -Action {
    # Display the dataset.
    if ($EventArgs.Succeeded) {
        # An event with null DataSetData just indicates a successful connection.
        if ($EventArgs.DataSetData -ne $null) {
            Write-Host
            Write-Host "Dataset data: $($EventArgs.DataSetData)"
            foreach ($pair in $EventArgs.DataSetData.FieldDataDictionary.GetEnumerator()) {
                Write-Host $pair
            }
        }
    }
    else {
        Write-Host
        Write-Host "*** Failure: $($EventArgs.ErrorMessageBrief)"
    }
}

Write-Host "Subscribing..."
[IEasyUASubscriberExtension]::SubscribeDataSet($subscriber, $pubSubConnectionDescriptor)

Write-Host "Processing dataset message events for 20 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 20) {
    Start-Sleep -Seconds 1
}

Write-Host "Unsubscribing..."
$subscriber.UnsubscribeAllDataSets()

Write-Host "Waiting for 1 second..."
# Unsubscribe operation is asynchronous, messages may still come for a short while.
Start-Sleep -Seconds 1

Write-Host "Finished."


# Example output (truncated):
#
#Subscribing...
#Processing dataset message events for 20 seconds...
#
#Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
#[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#
#Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
#[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#...
// This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection with UDP UADP mapping.
//
// In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
// http://kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

#include "stdafx.h"    // Includes "QuickOpc.h", and other commonly used files
#include <atlcom.h>
#include "SubscribeDataSet.h"

namespace PubSub
{
    namespace _EasyUASubscriber
    {
        // CEasyUASubscriberEvents

        class CEasyUASubscriberEvents : public IDispEventImpl<1, CEasyUASubscriberEvents>
        {
        public:
            BEGIN_SINK_MAP(CEasyUASubscriberEvents)
                // Event handlers must have the __stdcall calling convention
                SINK_ENTRY(1, DISPID_EASYUASUBSCRIBEREVENTS_DATASETMESSAGE, &CEasyUASubscriberEvents::DataSetMessage)
            END_SINK_MAP()

        public:
            // The handler for EasyUAClient.DataChangeNotification event
            STDMETHOD(DataSetMessage)(VARIANT varSender, _EasyUADataSetMessageEventArgs* pEventArgs)
            {
                // Display the dataset.
                if (pEventArgs->Succeeded)
                {
                    _UADataSetDataPtr DataSetDataPtr = pEventArgs->DataSetData;
                    // An event with null DataSetData just indicates a successful connection.
                    if (DataSetDataPtr != NULL)
                    {
                        _tprintf(_T("\n"));
                        _tprintf(_T("Dataset data: %s\n"), (LPCTSTR)CW2CT(DataSetDataPtr->ToString));

                        IEnumVARIANTPtr EnumDictionaryEntry2Ptr = DataSetDataPtr->FieldDataDictionary->GetEnumerator();
                        _variant_t vDictionaryEntry2;
                        while (EnumDictionaryEntry2Ptr->Next(1, &vDictionaryEntry2, NULL) == S_OK)
                        {
                            _DictionaryEntry2Ptr DictionaryEntry2Ptr(vDictionaryEntry2);
                            _tprintf(_T("%s\n"), (LPCTSTR)CW2CT(DictionaryEntry2Ptr->ToString));
                            vDictionaryEntry2.Clear();
                        }
                    }
                }
                else
                {
                    _tprintf(_T("\n"));
                    _tprintf(_T("*** Failure: %s\n"), (LPCTSTR)CW2CT(pEventArgs->ErrorMessageBrief));
                }
                return S_OK;
            }
        };



        void SubscribeDataSet::Main1()
        {
            // Initialize the COM library
            CoInitializeEx(NULL, COINIT_MULTITHREADED);
            {
                // Prepare arguments for a subscription to the dataset.
                _EasyUASubscribeDataSetArgumentsPtr SubscribeDataSetArgumentsPtr(__uuidof(EasyUASubscribeDataSetArguments));

                // Define the PubSub connection we will work with.
                _UAPubSubConnectionDescriptorPtr PubSubConnectionDescriptorPtr =
                    SubscribeDataSetArgumentsPtr->DataSetSubscriptionDescriptor->ConnectionDescriptor;
                PubSubConnectionDescriptorPtr->ResourceAddress->ResourceDescriptor->UrlString = L"opc.udp://239.0.0.1";
                // In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
                // the statement below. Your actual interface name may differ, of course.
                //PubSubConnectionDescriptorPtr->ResourceAddress->InterfaceName = L"Ethernet";

                // Instantiate the subscriber object.
                _EasyUASubscriberPtr SubscriberPtr(__uuidof(EasyUASubscriber));

                // Hook events.
                CEasyUASubscriberEvents* pSubscriberEvents = new CEasyUASubscriberEvents();
                AtlGetObjectSourceInterface(SubscriberPtr, &pSubscriberEvents->m_libid, &pSubscriberEvents->m_iid,
                    &pSubscriberEvents->m_wMajorVerNum, &pSubscriberEvents->m_wMinorVerNum);
                pSubscriberEvents->m_iid = _uuidof(DEasyUASubscriberEvents);
                pSubscriberEvents->DispEventAdvise(SubscriberPtr, &pSubscriberEvents->m_iid);

                _tprintf(_T("Subscribing...\n"));
                _variant_t vSubscribeDataSetArguments(SubscribeDataSetArgumentsPtr.GetInterfacePtr());
                SubscriberPtr->SubscribeDataSet(vSubscribeDataSetArguments);

                _tprintf(_T("Processing dataset message events for 20 seconds...\n"));
                Sleep(20 * 1000);

                _tprintf(_T("Unsubscribing...\n"));
                SubscriberPtr->UnsubscribeAllDataSets();

                _tprintf(_T("Waiting for 1 second...\n"));
                // Unsubscribe operation is asynchronous, messages may still come for a short while.
                Sleep(1 * 1000);

                // Unhook events
                pSubscriberEvents->DispEventUnadvise(SubscriberPtr, &pSubscriberEvents->m_iid);

                _tprintf(_T("Finished.\n"));
            }
            // Release all interface pointers BEFORE calling CoUninitialize()
            CoUninitialize();
        }



        // Example output:
        //
        //Subscribing...
        //Processing dataset message events for 20 seconds...
        //
        ////Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
        //[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //
        //Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
        //[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
        //...
    }
}
// This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection with UDP UADP mapping.
//
// In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
// http://kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

type
  TSubscriberEventHandlers77 = class
    procedure OnDataSetMessage(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUADataSetMessageEventArgs);
  end;

class procedure SubscribeDataSet.Main1;
var
  ConnectionDescriptor: _UAPubSubConnectionDescriptor;
  SubscribeDataSetArguments: _EasyUASubscribeDataSetArguments;
  Subscriber: TEasyUASubscriber;
  SubscriberEventHandlers: TSubscriberEventHandlers77;
begin
  // Define the PubSub connection we will work with.
  SubscribeDataSetArguments := CoEasyUASubscribeDataSetArguments.Create;
  ConnectionDescriptor := SubscribeDataSetArguments.DataSetSubscriptionDescriptor.ConnectionDescriptor;
  ConnectionDescriptor.ResourceAddress.ResourceDescriptor.UrlString := 'opc.udp://239.0.0.1';
  // In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
  // the statement below. Your actual interface name may differ, of course.
  //ConnectionDescriptor.ResourceAddress.InterfaceName := 'Ethernet';

  // Instantiate the subscriber object and hook events.
  Subscriber := TEasyUASubscriber.Create(nil);
  SubscriberEventHandlers := TSubscriberEventHandlers77.Create;
  Subscriber.OnDataSetMessage := SubscriberEventHandlers.OnDataSetMessage;

  WriteLn('Subscribing...');
  Subscriber.SubscribeDataSet(SubscribeDataSetArguments);

  WriteLn('Processing dataset message for 20 seconds...');
  PumpSleep(20*1000);

  WriteLn('Unsubscribing...');
  Subscriber.UnsubscribeAllDataSets;

  WriteLn('Waiting for 1 second...');
  // Unsubscribe operation is asynchronous, messages may still come for a short while.
  PumpSleep(1*1000);

  WriteLn('Finished.');
  FreeAndNil(Subscriber);
  FreeAndNil(SubscriberEventHandlers);
end;

procedure TSubscriberEventHandlers77.OnDataSetMessage(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUADataSetMessageEventArgs);
var
  Count: Cardinal;
  DictionaryEntry2: _DictionaryEntry2;
  Element: OleVariant;
  FieldDataDictionaryEnumerator: IEnumVariant;
begin
  // Display the dataset.
  if eventArgs.Succeeded then
  begin
    // An event with null DataSetData just indicates a successful connection.
    if eventArgs.DataSetData <> nil then
    begin
      WriteLn;
      WriteLn('Dataset data: ', eventArgs.DataSetData.ToString);
      FieldDataDictionaryEnumerator := eventArgs.DataSetData.FieldDataDictionary.GetEnumerator;
      while (FieldDataDictionaryEnumerator.Next(1, Element, Count) = S_OK) do
      begin
        DictionaryEntry2 := IUnknown(Element) as _DictionaryEntry2;
        WriteLn(DictionaryEntry2.ToString);
      end;
    end;
  end
  else begin
    WriteLn;
      WriteLn('*** Failure: ', eventArgs.ErrorMessageBrief);
  end;
end;

// Example output:
//
//Subscribing...
//Processing dataset message events for 20 seconds...
//
////Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
//[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//
//Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
//[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//...
# This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection, and pull events, and display
# the incoming datasets.
#
# In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
# http://kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

import time
import win32com.client

# Define the PubSub connection we will work with.
subscribeDataSetArguments = win32com.client.Dispatch('OpcLabs.EasyOpc.UA.PubSub.OperationModel.EasyUASubscribeDataSetArguments')
connectionDescriptor = subscribeDataSetArguments.DataSetSubscriptionDescriptor.ConnectionDescriptor
connectionDescriptor.ResourceAddress.ResourceDescriptor.UrlString = 'opc.udp://239.0.0.1'
# In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
# the statement below. Your actual interface name may differ, of course.
#connectionDescriptor.ResourceAddress.InterfaceName = 'Ethernet'

# Instantiate the subscriber object.
subscriber = win32com.client.Dispatch('OpcLabs.EasyOpc.UA.PubSub.EasyUASubscriber')
# In order to use event pull, you must set a non-zero queue capacity upfront.
subscriber.PullDataSetMessageQueueCapacity = 1000

print('Subscribing...')
subscriber.SubscribeDataSet(subscribeDataSetArguments)

print('Processing dataset message events for 20 seconds...')
endTime = time.time() + 20
while time.time() < endTime:
    eventArgs = subscriber.PullDataSetMessage(2*1000)
    if eventArgs is not None:
        # Display the dataset.
        if eventArgs.Succeeded:
            # An event with null DataSetData just indicates a successful connection.
            if eventArgs.DataSetdata is not None:
                print('')
                print('Dataset data: ', eventArgs.DataSetData)
                for pair in eventArgs.DataSetData.FieldDataDictionary:
                    print(pair)
        else:
            print('')
            print('*** Failure: ', eventArgs.ErrorMessageBrief)

print('Unsubscribing...')
subscriber.UnsubscribeAllDataSets

print('Waiting for 1 second...')
# Unsubscribe operation is asynchronous, messages may still come for a short while.
endTime = time.time() + 1
while time.time() < endTime:
    pass

print('Finished.')



# Example output:
#
#Subscribing...
#Processing dataset message events for 20 seconds...
#
##Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
#[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#
#Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
#[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
#...
// This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection with UDP UADP mapping.
//
// In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
// http://kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

class SubscriberEvents {
    function DataSetMessage($Sender, $E)
    {
        // Display the dataset.
        if ($E->Succeeded) {
            // An event with null DataSetData just indicates a successful connection.
            printf("\n");
            printf("Dataset data: %s\n", $E->DataSetData);
            foreach ($E->DataSetData->FieldDataDictionary as $Pair)
                printf("%s\n", $Pair);
        }
        else {
            printf("\n");
            printf("*** Failure: %s\n", $E->ErrorMessageBrief);
        }
    }
}



// Define the PubSub connection we will work with.
$SubscribeDataSetArguments = new COM("OpcLabs.EasyOpc.UA.PubSub.OperationModel.EasyUASubscribeDataSetArguments");
$ConnectionDescriptor = $SubscribeDataSetArguments->DataSetSubscriptionDescriptor->ConnectionDescriptor;
$ConnectionDescriptor->ResourceAddress->ResourceDescriptor->UrlString = "opc.udp://239.0.0.1";
// In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
// the statement below. Your actual interface name may differ, of course.
$ConnectionDescriptor->ResourceAddress->InterfaceName = "Ethernet";

// Instantiate the subscriber object and hook events.
$Subscriber = new COM("OpcLabs.EasyOpc.UA.PubSub.EasyUASubscriber");
$SubscriberEvents = new SubscriberEvents();
com_event_sink($Subscriber, $SubscriberEvents, "DEasyUASubscriberEvents");

printf("Subscribing...\n");
$Subscriber->SubscribeDataSet($SubscribeDataSetArguments);

printf("Processing dataset message events for 20 seconds...");
$startTime = time();
do {
    com_message_pump(1000);
} while (time() < $startTime + 20);

printf("Unsubscribing...\n");
$Subscriber->UnsubscribeAllDataSets;

printf("Waiting for 1 second...");
// Unsubscribe operation is asynchronous, messages may still come for a short while.
$startTime = time();
do {
    com_message_pump(1000);
} while (time() < $startTime + 1);

printf("Finished.\n");



// Example output:
//
//Subscribing...
//Processing dataset message events for 20 seconds...
//
////Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
//[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//
//Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
//[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
//...
Rem This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection with UDP UADP mapping.
Rem
Rem In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
Rem http://kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

' The subscriber object, with events
'Public WithEvents Subscriber2 As EasyUASubscriber

Private Sub EasyUASubscriber_SubscribeDataSet_Main1_Command_Click()
    OutputText = ""

    ' Define the PubSub connection we will work with.
    Dim subscribeDataSetArguments As New EasyUASubscribeDataSetArguments
    Dim ConnectionDescriptor As UAPubSubConnectionDescriptor
    Set ConnectionDescriptor = subscribeDataSetArguments.dataSetSubscriptionDescriptor.ConnectionDescriptor
    ConnectionDescriptor.ResourceAddress.ResourceDescriptor.UrlString = "opc.udp://239.0.0.1"

    ' In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
    ' the statement below. Your actual interface name may differ, of course.
    'ConnectionDescriptor.ResourceAddress.InterfaceName := 'Ethernet';

    ' Instantiate the subscriber object and hook events.
    Set Subscriber2 = New EasyUASubscriber

    OutputText = OutputText & "Subscribing..." & vbCrLf
    Subscriber2.SubscribeDataSet subscribeDataSetArguments

    OutputText = OutputText & "Processing dataset message for 20 seconds..." & vbCrLf
    Pause 20000

    OutputText = OutputText & "Unsubscribing..." & vbCrLf
    Subscriber2.UnsubscribeAllDataSets

    OutputText = OutputText & "Waiting for 1 second..." & vbCrLf
    ' Unsubscribe operation is asynchronous, messages may still come for a short while.
    Pause 1000

    Set Subscriber2 = Nothing

    OutputText = OutputText & "Finished." & vbCrLf
End Sub

Private Sub Subscriber2_DataSetMessage(ByVal sender As Variant, ByVal eventArgs As EasyUADataSetMessageEventArgs)
    ' Display the dataset
    If eventArgs.Succeeded Then
        ' An event with null DataSetData just indicates a successful connection.
        If Not eventArgs.DataSetData Is Nothing Then
            OutputText = OutputText & vbCrLf
            OutputText = OutputText & "Dataset data: " & eventArgs.DataSetData & vbCrLf
            Dim dictionaryEntry2: For Each dictionaryEntry2 In eventArgs.DataSetData.FieldDataDictionary
                OutputText = OutputText & dictionaryEntry2 & vbCrLf
            Next
        End If
    Else
        OutputText = OutputText & vbCrLf
        OutputText = OutputText & eventArgs.ErrorMessageBrief & vbCrLf
    End If
End Sub
' Example output:
'
'Subscribing...
'Processing dataset message events for 20 seconds...
'
'Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
'[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'
'Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
'[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'...
' This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection with UDP UADP mapping.
'
' In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
' http://kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

Imports OpcLabs.EasyOpc.UA.PubSub
Imports OpcLabs.EasyOpc.UA.PubSub.OperationModel

Namespace UADocExamples.PubSub._EasyUASubscriber
    Friend Class SubscribeDataSet
        Public Shared Sub Main1()

            ' Define the PubSub connection we will work with. Uses implicit conversion from a string.
            Dim pubSubConnectionDescriptor As UAPubSubConnectionDescriptor = "opc.udp://239.0.0.1"
            ' In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
            ' the statement below. Your actual interface name may differ, of course.
            ' pubSubConnectionDescriptor.ResourceAddress.InterfaceName = "Ethernet"

            ' Instantiate the subscriber object and hook events.
            Dim subscriber = New EasyUASubscriber()
            AddHandler subscriber.DataSetMessage, AddressOf subscriber_DataSetMessage

            Console.WriteLine("Subscribing...")
            subscriber.SubscribeDataSet(pubSubConnectionDescriptor)

            Console.WriteLine("Processing dataset message events for 20 seconds...")
            Threading.Thread.Sleep(20 * 1000)

            Console.WriteLine("Unsubscribing...")
            subscriber.UnsubscribeAllDataSets()

            Console.WriteLine("Waiting for 1 second...")
            ' Unsubscribe operation is asynchronous, messages may still come for a short while.
            Threading.Thread.Sleep(1 * 1000)

            Console.WriteLine("Finished...")
        End Sub

        Private Shared Sub subscriber_DataSetMessage(ByVal sender As Object, ByVal e As EasyUADataSetMessageEventArgs)
            ' Display the dataset.
            If e.Succeeded Then
                ' An event with null DataSetData just indicates a successful connection.
                If e.DataSetData IsNot Nothing Then
                    Console.WriteLine()
                    Console.WriteLine($"Dataset data: {e.DataSetData}")
                    For Each pair As KeyValuePair(Of String, UADataSetFieldData) In e.DataSetData.FieldDataDictionary
                        Console.WriteLine(pair)
                    Next
                End If
            Else
                Console.WriteLine()
                Console.WriteLine($"*** Failure: {e.ErrorMessageBrief}")
            End If
        End Sub
    End Class



    ' Example output
    '
    'Subscribing...
    'Processing dataset message events for 20 seconds...
    '
    ''Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
    '[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '
    'Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
    '[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
    '...

End Namespace
Rem This example shows how to subscribe to all dataset messages on an OPC-UA PubSub connection with UDP UADP mapping.
Rem
Rem In order to produce network messages for this example, run the UADemoPublisher tool. For documentation, see
Rem http://kb.opclabs.com/UADemoPublisher_Basics . In some cases, you may have to specify the interface name to be used.

Option Explicit

' Define the PubSub connection we will work with.
Dim SubscribeDataSetArguments: Set SubscribeDataSetArguments = CreateObject("OpcLabs.EasyOpc.UA.PubSub.OperationModel.EasyUASubscribeDataSetArguments")
Dim ConnectionDescriptor: Set ConnectionDescriptor = SubscribeDataSetArguments.DataSetSubscriptionDescriptor.ConnectionDescriptor
ConnectionDescriptor.ResourceAddress.ResourceDescriptor.UrlString = "opc.udp://239.0.0.1"
' In some cases you may have to set the interface (network adapter) name that needs to be used, similarly to
' the statement below. Your actual interface name may differ, of course.
' ConnectionDescriptor.ResourceAddress.InterfaceName = "Ethernet"

' Instantiate the subscriber object and hook events.
Dim Subscriber: Set Subscriber = CreateObject("OpcLabs.EasyOpc.UA.PubSub.EasyUASubscriber")
WScript.ConnectObject Subscriber, "Subscriber_"

WScript.Echo "Subscribing..."
Subscriber.SubscribeDataSet SubscribeDataSetArguments

WScript.Echo "Processing dataset message events for 20 seconds..."
WScript.Sleep 20*1000

WScript.Echo "Unsubscribing..."
Subscriber.UnsubscribeAllDataSets

WScript.Echo "Waiting for 1 second..."
' Unsubscribe operation is asynchronous, messages may still come for a short while.
WScript.Sleep 1*1000

WScript.Echo "Finished."



Sub Subscriber_DataSetMessage(Sender, e)
    ' Display the dataset.
    If e.Succeeded Then
        ' An event with null DataSetData just indicates a successful connection.
        If Not (e.DataSetData Is Nothing) Then
            WScript.Echo
            WScript.Echo "Dataset data: " & e.DataSetData
            Dim Pair: For Each Pair in e.DataSetData.FieldDataDictionary
                WScript.Echo Pair
            Next
        End If
    Else
        WScript.Echo
        WScript.Echo "*** Failure: " & e.ErrorMessageBrief
    End If
End Sub



' Example output:
'
'Subscribing...
'Processing dataset message events for 20 seconds...
'
''Dataset data: Good; Data; publisher="32", writer=1, class=eae79794-1af7-4f96-8401-4096cd1d8908, fields: 4
'[#0, True {System.Boolean} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#1, 7945 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#2, 5246 {System.Int32} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#3, 9/30/2019 11:19:14 AM {System.DateTime} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'
'Dataset data: Good; Data; publisher="32", writer=3, class=96976b7b-0db7-46c3-a715-0979884b55ae, fields: 100
'[#0, 45 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#1, 145 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#2, 245 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#3, 345 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#4, 445 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#5, 545 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#6, 645 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#7, 745 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#8, 845 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#9, 945 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'[#10, 1045 {System.Int64} @0001-01-01T00:00:00.000 @@0001-01-01T00:00:00.000; Good]
'...
Inheritance Hierarchy

System.Object
   System.MarshalByRefObject
      System.ComponentModel.Component
         OpcLabs.BaseLib.Widgets.Widget
            OpcLabs.BaseLib.Widgets.NotifyingWidget
               OpcLabs.EasyOpc.UA.PubSub.EasyUASubscriber

Requirements

Target Platforms: .NET Framework: Windows 10, Windows Server 2012, Windows Server 2016; .NET Core, .NET 5: Linux, macOS, Microsoft Windows

See Also

Reference

EasyUASubscriber Members
OpcLabs.EasyOpc.UA.PubSub Namespace
