QuickOPC User's Guide and Reference
_EasyUAMonitoredItemArguments Interface
Members  Example



OpcLabs.EasyOpcUA Assembly > OpcLabs.EasyOpc.UA.OperationModel.ComTypes Namespace : _EasyUAMonitoredItemArguments Interface
Exposes OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments to COM clients.

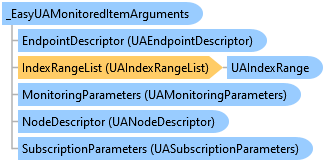

Object Model
_EasyUAMonitoredItemArguments InterfaceUAEndpointDescriptor ClassUAIndexRangeList ClassUAIndexRange ClassUAMonitoringParameters ClassUANodeDescriptor ClassUASubscriptionParameters Class
Syntax
'Declaration

<CLSCompliantAttribute(False)>
<ComVisibleAttribute(True)>
<GuidAttribute("751F09D0-7C37-4E42-8719-26471E33010B")>
Public Interface _EasyUAMonitoredItemArguments
'Usage

Dim instance As _EasyUAMonitoredItemArguments
[CLSCompliant(false)]
[ComVisible(true)]
[Guid("751F09D0-7C37-4E42-8719-26471E33010B")]
public interface _EasyUAMonitoredItemArguments
[CLSCompliant(false)]
[ComVisible(true)]
[Guid("751F09D0-7C37-4E42-8719-26471E33010B")]
public interface class _EasyUAMonitoredItemArguments
Example
// This example shows how to subscribe to changes of multiple monitored items and display the value of the monitored item with
// each change.

#include "stdafx.h"    // Includes "QuickOpc.h", and other commonly used files
#include <atlcom.h>
#include <atlsafe.h>
#include "SubscribeMultipleMonitoredItems.h"

namespace _EasyUAClient
{
    // CEasyUAClientEvents

    class CEasyUAClientEvents : public IDispEventImpl<1, CEasyUAClientEvents>
    {
    public:
    BEGIN_SINK_MAP(CEasyUAClientEvents)
        // Event handlers must have the __stdcall calling convention
        SINK_ENTRY(1, DISPID_EASYUACLIENTEVENTS_DATACHANGENOTIFICATION, &CEasyUAClientEvents::DataChangeNotification)
    END_SINK_MAP()

    public:
        // The handler for EasyUAClient.DataChangeNotification event
        STDMETHOD(DataChangeNotification)(VARIANT varSender, _EasyUADataChangeNotificationEventArgs* pEventArgs)
        {
            // Display the data
            _tprintf(_T("%s: "), (LPCTSTR)CW2CT(pEventArgs->Arguments->NodeDescriptor->ToString));
            // Remark: Production code would check EventArgsPtr->Exception before accessing EventArgsPtr->AttributeData.
            _UAAttributeDataPtr AttributeDataPtr(pEventArgs->AttributeData);
            _tprintf(_T("%s\n"), (LPCTSTR)CW2CT(AttributeDataPtr->ToString));

            return S_OK;
        }
    };



    void SubscribeMultipleMonitoredItems::Main()
    {
        // Initialize the COM library
        CoInitializeEx(NULL, COINIT_MULTITHREADED);
        {
            // Instantiate the client object
            _EasyUAClientPtr ClientPtr(__uuidof(EasyUAClient));

            // Hook events
            CEasyUAClientEvents* pClientEvents = new CEasyUAClientEvents();
            AtlGetObjectSourceInterface(ClientPtr, &pClientEvents->m_libid, &pClientEvents->m_iid,
                &pClientEvents->m_wMajorVerNum, &pClientEvents->m_wMinorVerNum);
            pClientEvents->m_iid = _uuidof(DEasyUAClientEvents);
            pClientEvents->DispEventAdvise(ClientPtr, &pClientEvents->m_iid);

            //
            _tprintf(_T("Subscribing...\n"));

            _UAMonitoringParametersPtr MonitoringParametersPtr(_uuidof(UAMonitoringParameters));
            MonitoringParametersPtr->SamplingInterval = 1000;

            _UAMonitoredItemArgumentsPtr MonitoringArguments1Ptr(_uuidof(EasyUAMonitoredItemArguments));
            MonitoringArguments1Ptr->EndpointDescriptor->UrlString = L"http://opcua.demo-this.com:51211/UA/SampleServer";
            MonitoringArguments1Ptr->NodeDescriptor->NodeId->ExpandedText = L"nsu=http://test.org/UA/Data/ ;i=10845";
            MonitoringArguments1Ptr->MonitoringParameters = MonitoringParametersPtr;

            _UAMonitoredItemArgumentsPtr MonitoringArguments2Ptr(_uuidof(EasyUAMonitoredItemArguments));
            MonitoringArguments2Ptr->EndpointDescriptor->UrlString = L"http://opcua.demo-this.com:51211/UA/SampleServer";
            MonitoringArguments2Ptr->NodeDescriptor->NodeId->ExpandedText = L"nsu=http://test.org/UA/Data/ ;i=10853";
            MonitoringArguments2Ptr->MonitoringParameters = MonitoringParametersPtr;

            _UAMonitoredItemArgumentsPtr MonitoringArguments3Ptr(_uuidof(EasyUAMonitoredItemArguments));
            MonitoringArguments3Ptr->EndpointDescriptor->UrlString = L"http://opcua.demo-this.com:51211/UA/SampleServer";
            MonitoringArguments3Ptr->NodeDescriptor->NodeId->ExpandedText = L"nsu=http://test.org/UA/Data/ ;i=10855";
            MonitoringArguments3Ptr->MonitoringParameters = MonitoringParametersPtr;

            CComSafeArray<VARIANT> arguments(3);
            arguments.SetAt(0, _variant_t((IDispatch*)MonitoringArguments1Ptr));
            arguments.SetAt(1, _variant_t((IDispatch*)MonitoringArguments2Ptr));
            arguments.SetAt(2, _variant_t((IDispatch*)MonitoringArguments3Ptr));
            CComVariant vArguments(arguments);

            CComSafeArray<VARIANT> handles;
            handles.Attach(ClientPtr->SubscribeMultipleMonitoredItems(&vArguments));

            for (int i = handles.GetLowerBound(); i <= handles.GetUpperBound(); i++)
            {
                _variant_t vString;
                vString.ChangeType(VT_BSTR, &_variant_t(handles[i]));
                _tprintf(_T("handleArray(d)s\n"), i, (LPCTSTR)CW2CT((_bstr_t)vString));
            }

            _tprintf(_T("Processing monitored item changed events for 10 seconds...\n"));
            Sleep(10*1000);

            _tprintf(_T("Unsubscribing...\n"));
            ClientPtr->UnsubscribeAllMonitoredItems();

            _tprintf(_T("Waiting for 5 seconds...\n"));
            Sleep(5*1000);

            // Unhook events
            pClientEvents->DispEventUnadvise(ClientPtr, &pClientEvents->m_iid);
        }
         // Release all interface pointers BEFORE calling CoUninitialize()
        CoUninitialize();
    }
}
// This example shows how to subscribe to changes of multiple monitored items and display the value of the monitored item with
// each change.

{
type
  TClientEventHandlers = class
    procedure OnDataChangeNotification(
      Sender: TObject;
      sender0: OleVariant;
      eventArgs: _EasyUADataChangeNotificationEventArgs);
  end;

procedure TClientEventHandlers.OnDataChangeNotification(
  Sender: TObject;
  sender0: OleVariant;
  eventArgs: _EasyUADataChangeNotificationEventArgs);
begin
  // Display the data
  // Remark: Production code would check eventArgs.Exception before accessing
  // eventArgs.AttributeData.
    WriteLn(eventArgs.Arguments.NodeDescriptor.ToString, ': ',
    eventArgs.AttributeData.ToString);
end;
}

class procedure SubscribeMultipleMonitoredItems.Main;
var
  Arguments: OleVariant;
  EvsClient: TEvsEasyUAClient;
  Client: EasyUAClient;
  ClientEventHandlers: TClientEventHandlers;
  Handle: Cardinal;
  HandleArray: OleVariant;
  I: Cardinal;
  MonitoredItemArguments1, MonitoredItemArguments2, MonitoredItemArguments3:
    _EasyUAMonitoredItemArguments;
  MonitoringParameters: _UAMonitoringParameters;
begin
  // Instantiate the client object and hook events
  EvsClient := TEvsEasyUAClient.Create(nil);
  Client := EvsClient.ComServer;
  ClientEventHandlers := TClientEventHandlers.Create;
  EvsClient.OnDataChangeNotification := @ClientEventHandlers.OnDataChangeNotification;

  WriteLn('Subscribing...');
  MonitoringParameters := CoUAMonitoringParameters.Create;
  MonitoringParameters.SamplingInterval := 1000;
  MonitoredItemArguments1 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments1.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments1.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10845';
  MonitoredItemArguments1.MonitoringParameters := MonitoringParameters;
  MonitoredItemArguments2 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments2.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments2.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10853';
  MonitoredItemArguments2.MonitoringParameters := MonitoringParameters;
  MonitoredItemArguments3 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments3.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments3.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10855';
  MonitoredItemArguments3.MonitoringParameters := MonitoringParameters;
  Arguments := VarArrayCreate([0, 2], varVariant);
  Arguments[0] := MonitoredItemArguments1;
  Arguments[1] := MonitoredItemArguments2;
  Arguments[2] := MonitoredItemArguments3;

  TVarData(HandleArray).VType := varArray or varVariant;
  TVarData(HandleArray).VArray := PVarArray(
    Client.SubscribeMultipleMonitoredItems(PSafeArray(TVarData(Arguments).VArray)));

  for I := VarArrayLowBound(HandleArray, 1) to VarArrayHighBound(HandleArray, 1) do
  begin
      Handle := Cardinal(HandleArray[I]);
      WriteLn('HandleArray[', I, ']: ', Handle);
  end;

  WriteLn('Processing monitored item changed events for 10 seconds...');
  PumpSleep(10*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished...');
end;
// This example shows how to subscribe to changes of multiple monitored items and display the value of the monitored item with
// each change.

type
  TClientEventHandlers123 = class
    procedure OnDataChangeNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUADataChangeNotificationEventArgs);
  end;

procedure TClientEventHandlers123.OnDataChangeNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUADataChangeNotificationEventArgs);
begin
  // Display the data
  if eventArgs.Succeeded then
      WriteLn(eventArgs.Arguments.NodeDescriptor.ToString, ': ',
      eventArgs.AttributeData.ToString)
  else
      WriteLn(eventArgs.Arguments.NodeDescriptor.ToString, ' *** Failure: ',
      eventArgs.ErrorMessageBrief);
end;

class procedure SubscribeMultipleMonitoredItems.Main;
var
  Arguments: OleVariant;
  Client: TEasyUAClient;
  ClientEventHandlers: TClientEventHandlers123;
  Handle: Cardinal;
  HandleArray: OleVariant;
  I: Cardinal;
  MonitoredItemArguments1, MonitoredItemArguments2, MonitoredItemArguments3:
    _EasyUAMonitoredItemArguments;
  MonitoringParameters: _UAMonitoringParameters;
begin
  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TClientEventHandlers123.Create;
  Client.OnDataChangeNotification := ClientEventHandlers.OnDataChangeNotification;

  WriteLn('Subscribing...');
  MonitoringParameters := CoUAMonitoringParameters.Create;
  MonitoringParameters.SamplingInterval := 1000;
  MonitoredItemArguments1 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments1.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments1.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10845';
  MonitoredItemArguments1.MonitoringParameters := MonitoringParameters;
  MonitoredItemArguments2 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments2.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments2.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10853';
  MonitoredItemArguments2.MonitoringParameters := MonitoringParameters;
  MonitoredItemArguments3 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments3.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments3.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10855';
  MonitoredItemArguments3.MonitoringParameters := MonitoringParameters;
  Arguments := VarArrayCreate([0, 2], varVariant);
  Arguments[0] := MonitoredItemArguments1;
  Arguments[1] := MonitoredItemArguments2;
  Arguments[2] := MonitoredItemArguments3;

  TVarData(HandleArray).VType := varArray or varVariant;
  TVarData(HandleArray).VArray := PVarArray(
    Client.SubscribeMultipleMonitoredItems(Arguments));

  for I := VarArrayLowBound(HandleArray, 1) to VarArrayHighBound(HandleArray, 1) do
  begin
      Handle := Cardinal(HandleArray[I]);
      WriteLn('HandleArray[', I, ']: ', Handle);
  end;

  WriteLn('Processing monitored item changed events for 10 seconds...');
  PumpSleep(10*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished.');
  VarClear(HandleArray);
  VarClear(Arguments);
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
end;
// This example shows how to subscribe to changes of multiple monitored items and display the value of the monitored item with
// each change.

class ClientEvents {
    function DataChangeNotification($Sender, $E)
    {
        // Display the data
        if ($E->Succeeded)
            printf(" s\n", $E->Arguments->NodeDescriptor, $E->AttributeData);
        else
            printf("s *** Failures\n", $E->Arguments->NodeDescriptor, $E->ErrorMessageBrief);
    }
}



// Instantiate the client object and hook events
$Client = new COM("OpcLabs.EasyOpc.UA.EasyUAClient");
$ClientEvents = new ClientEvents();
com_event_sink($Client, $ClientEvents, "DEasyUAClientEvents");

printf("Subscribing...\n");
$MonitoringParameters = new COM("OpcLabs.EasyOpc.UA.UAMonitoringParameters");
$MonitoringParameters->SamplingInterval = 1000;
$MonitoredItemArguments1 = new COM("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments");
$MonitoredItemArguments1->EndpointDescriptor->UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer";
$MonitoredItemArguments1->NodeDescriptor->NodeId->ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10845";
$MonitoredItemArguments1->MonitoringParameters = $MonitoringParameters;
$MonitoredItemArguments2 = new COM("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments");
$MonitoredItemArguments2->EndpointDescriptor->UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer";
$MonitoredItemArguments2->NodeDescriptor->NodeId->ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10853";
$MonitoredItemArguments2->MonitoringParameters = $MonitoringParameters;
$MonitoredItemArguments3 = new COM("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments");
$MonitoredItemArguments3->EndpointDescriptor->UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer";
$MonitoredItemArguments3->NodeDescriptor->NodeId->ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10855";
$MonitoredItemArguments3->MonitoringParameters = $MonitoringParameters;
$arguments[0] = $MonitoredItemArguments1;
$arguments[1] = $MonitoredItemArguments2;
$arguments[2] = $MonitoredItemArguments3;
$handleArray = $Client->SubscribeMultipleMonitoredItems($arguments);

for ($i = 0; $i < count($handleArray); $i++)
{
    printf("handleArray[d]d\n", $i, $handleArray[$i]);
}

printf("Processing monitored item changed events for 10 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 10);

printf("Unsubscribing...\n");
$Client->UnsubscribeAllMonitoredItems;

printf("Waiting for 5 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 5);
Rem This example shows how to subscribe to changes of multiple monitored items and display the value of the monitored item with
Rem each change.

' The client object, with events
'Public WithEvents Client2 As EasyUAClient

Public Sub SubscribeMultipleMonitoredItems_Main_Command_Click()
    OutputText = ""

    Set Client2 = New EasyUAClient

    OutputText = OutputText & "Subscribing..." & vbCrLf
    Dim MonitoringParameters As New UAMonitoringParameters
    MonitoringParameters.SamplingInterval = 1000

    Dim MonitoredItemArguments1 As New EasyUAMonitoredItemArguments
    MonitoredItemArguments1.endpointDescriptor.UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer"
    MonitoredItemArguments1.nodeDescriptor.NodeId.expandedText = "nsu=http://test.org/UA/Data/ ;i=10845"
    Set MonitoredItemArguments1.MonitoringParameters = MonitoringParameters
    MonitoredItemArguments1.SetState ("Item1")

    Dim MonitoredItemArguments2 As New EasyUAMonitoredItemArguments
    MonitoredItemArguments2.endpointDescriptor.UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer"
    MonitoredItemArguments2.nodeDescriptor.NodeId.expandedText = "nsu=http://test.org/UA/Data/ ;i=10853"
    Set MonitoredItemArguments2.MonitoringParameters = MonitoringParameters
    MonitoredItemArguments2.SetState ("Item2")

    Dim MonitoredItemArguments3 As New EasyUAMonitoredItemArguments
    MonitoredItemArguments3.endpointDescriptor.UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer"
    MonitoredItemArguments3.nodeDescriptor.NodeId.expandedText = "nsu=http://test.org/UA/Data/ ;i=10855"
    Set MonitoredItemArguments3.MonitoringParameters = MonitoringParameters
    MonitoredItemArguments3.SetState ("Item3")

    Dim arguments(2) As Variant
    Set arguments(0) = MonitoredItemArguments1
    Set arguments(1) = MonitoredItemArguments2
    Set arguments(2) = MonitoredItemArguments3
    Dim handleArray As Variant
    handleArray = Client2.SubscribeMultipleMonitoredItems(arguments)

    Dim i As Long: For i = LBound(handleArray) To UBound(handleArray)
        OutputText = OutputText & "handleArray(" & i & "): " & handleArray(i) & vbCrLf
    Next

    OutputText = OutputText & "Processing monitored item changed events for 10 seconds..." & vbCrLf
    Pause 10000

    OutputText = OutputText & "Unsubscribing..." & vbCrLf
    Call Client2.UnsubscribeAllMonitoredItems

    OutputText = OutputText & "Waiting for 5 seconds..." & vbCrLf
    Pause 5000

    Set Client2 = Nothing
    OutputText = OutputText & "Finished." & vbCrLf
End Sub

Public Sub Client2_DataChangeNotification(ByVal sender As Variant, ByVal eventArgs As EasyUADataChangeNotificationEventArgs)
    ' Display the data
    If eventArgs.Exception Is Nothing Then
        OutputText = OutputText & "[" & eventArgs.arguments.State & "] " & eventArgs.arguments.nodeDescriptor & ": " & eventArgs.AttributeData & vbCrLf
    Else
        OutputText = OutputText & "[" & eventArgs.arguments.State & "] " & eventArgs.arguments.nodeDescriptor & ": " & eventArgs.ErrorMessageBrief & vbCrLf
    End If
End Sub
Rem This example shows how to subscribe to changes of multiple monitored items and display the value of the monitored item with
Rem each change.

Option Explicit

' Instantiate the client object and hook events
Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.UA.EasyUAClient")
WScript.ConnectObject Client, "Client_"

WScript.Echo "Subscribing..."
Dim MonitoringParameters: Set MonitoringParameters = CreateObject("OpcLabs.EasyOpc.UA.UAMonitoringParameters")
MonitoringParameters.SamplingInterval = 1000
Dim MonitoredItemArguments1: Set MonitoredItemArguments1 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments")
MonitoredItemArguments1.EndpointDescriptor.UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer"
MonitoredItemArguments1.NodeDescriptor.NodeId.ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10845"
MonitoredItemArguments1.MonitoringParameters = MonitoringParameters
Dim MonitoredItemArguments2: Set MonitoredItemArguments2 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments")
MonitoredItemArguments2.EndpointDescriptor.UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer"
MonitoredItemArguments2.NodeDescriptor.NodeId.ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10853"
MonitoredItemArguments2.MonitoringParameters = MonitoringParameters
Dim MonitoredItemArguments3: Set MonitoredItemArguments3 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments")
MonitoredItemArguments3.EndpointDescriptor.UrlString = "http://opcua.demo-this.com:51211/UA/SampleServer"
MonitoredItemArguments3.NodeDescriptor.NodeId.ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10855"
MonitoredItemArguments3.MonitoringParameters = MonitoringParameters
Dim arguments(2)
Set arguments(0) = MonitoredItemArguments1
Set arguments(1) = MonitoredItemArguments2
Set arguments(2) = MonitoredItemArguments3
Dim handleArray: handleArray = Client.SubscribeMultipleMonitoredItems(arguments)

Dim i: For i = LBound(handleArray) To UBound(handleArray)
    WScript.Echo "handleArray(" & i & "): " & handleArray(i)
Next

WScript.Echo "Processing monitored item changed events for 10 seconds..."
WScript.Sleep 10 * 1000

WScript.Echo "Unsubscribing..."
Client.UnsubscribeAllMonitoredItems

WScript.Echo "Waiting for 5 seconds..."
WScript.Sleep 5 * 1000



Sub Client_DataChangeNotification(Sender, e)
    ' Display the data
    Dim display: If e.Exception Is Nothing Then display = e.AttributeData Else display = e.ErrorMessageBrief
    WScript.Echo e.Arguments.NodeDescriptor & ":" & display
End Sub
// This example shows how to subscribe to changes of multiple monitored items
// and display each change, identifying the different subscriptions by an
// object.

type
  TCustomObject = class
    Name: string;
    constructor Create(name: string);
  end;

constructor TCustomObject.Create(name: string);
begin
  Self.Name := name;
end;

type
  TObjectClientEventHandlers125 = class
    procedure OnDataChangeNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUADataChangeNotificationEventArgs);
  end;

procedure TObjectClientEventHandlers125.OnDataChangeNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUADataChangeNotificationEventArgs);
var
  stateAsObject: TCustomObject;
begin
  // Obtain the custom object we have passed in.
  stateAsObject := TCustomObject(INT_PTR(eventArgs.Arguments.State));
  // Display the data
  if eventArgs.Succeeded then
      WriteLn(stateAsObject.Name, ': ', eventArgs.AttributeData.ToString)
  else
      WriteLn(stateAsObject.Name, ' *** Failure: ', eventArgs.ErrorMessageBrief);
end;

class procedure SubscribeMultipleMonitoredItems.StateAsObject;
var
  Arguments: OleVariant;
  Client: TEasyUAClient;
  ClientEventHandlers: TObjectClientEventHandlers125;
  Handle: Cardinal;
  HandleArray: OleVariant;
  I: Cardinal;
  MonitoredItemArguments1, MonitoredItemArguments2, MonitoredItemArguments3:
    _EasyUAMonitoredItemArguments;
  MonitoringParameters: _UAMonitoringParameters;
  CustomObject1, CustomObject2, CustomObject3: TCustomObject;
begin
  CustomObject1 := TCustomObject.Create('First');
  CustomObject2 := TCustomObject.Create('Second');
  CustomObject3 := TCustomObject.Create('Third');

  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TObjectClientEventHandlers125.Create;
  Client.OnDataChangeNotification := ClientEventHandlers.OnDataChangeNotification;

  WriteLn('Subscribing...');
  MonitoringParameters := CoUAMonitoringParameters.Create;
  MonitoringParameters.SamplingInterval := 1000;

  MonitoredItemArguments1 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments1.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments1.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10845';
  MonitoredItemArguments1.MonitoringParameters := MonitoringParameters;
  MonitoredItemArguments1.SetState(INT_PTR(CustomObject1));  // A custom object that corresponds to the subscription

  MonitoredItemArguments2 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments2.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments2.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10853';
  MonitoredItemArguments2.MonitoringParameters := MonitoringParameters;
  MonitoredItemArguments2.SetState(INT_PTR(CustomObject2));  // A custom object that corresponds to the subscription

  MonitoredItemArguments3 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments3.EndpointDescriptor.UrlString := 'http://opcua.demo-this.com:51211/UA/SampleServer';
  MonitoredItemArguments3.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10855';
  MonitoredItemArguments3.MonitoringParameters := MonitoringParameters;
  MonitoredItemArguments3.SetState(INT_PTR(CustomObject3));  // A custom object that corresponds to the subscription

  Arguments := VarArrayCreate([0, 2], varVariant);
  Arguments[0] := MonitoredItemArguments1;
  Arguments[1] := MonitoredItemArguments2;
  Arguments[2] := MonitoredItemArguments3;

  TVarData(HandleArray).VType := varArray or varVariant;
  TVarData(HandleArray).VArray := PVarArray(
    Client.SubscribeMultipleMonitoredItems(Arguments));

  for I := VarArrayLowBound(HandleArray, 1) to VarArrayHighBound(HandleArray, 1) do
  begin
      Handle := Cardinal(HandleArray[I]);
      WriteLn('HandleArray[', I, ']: ', Handle);
  end;

  WriteLn('Processing monitored item changed events for 10 seconds...');
  PumpSleep(10*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished.');
  VarClear(HandleArray);
  VarClear(Arguments);
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
  FreeAndNil(CustomObject1);
  FreeAndNil(CustomObject2);
  FreeAndNil(CustomObject3);
end;
Requirements

Target Platforms: .NET Framework: Windows 10, Windows Server 2012, Windows Server 2016; .NET Core, .NET 5: Linux, macOS, Microsoft Windows

See Also

Reference

_EasyUAMonitoredItemArguments Members
OpcLabs.EasyOpc.UA.OperationModel.ComTypes Namespace
