QuickOPC User's Guide and Reference
_EasyDAClient Interface
Members  Example



OpcLabs.EasyOpcClassic Assembly > OpcLabs.EasyOpc.DataAccess.ComTypes Namespace : _EasyDAClient Interface
Exposes OpcLabs.EasyOpc.DataAccess.EasyDAClient to COM clients.

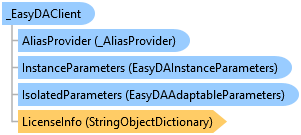

Object Model
_EasyDAClient InterfaceEasyDAInstanceParameters ClassEasyDAAdaptableParameters ClassStringObjectDictionary Class
Syntax
'Declaration

<CLSCompliantAttribute(False)>
<ComVisibleAttribute(True)>
<GuidAttribute("5D8A341A-863F-41D3-90D5-E88A714CF956")>
<InterfaceTypeAttribute(ComInterfaceType.InterfaceIsDual)>
Public Interface _EasyDAClient
'Usage

Dim instance As _EasyDAClient
[CLSCompliant(false)]
[ComVisible(true)]
[Guid("5D8A341A-863F-41D3-90D5-E88A714CF956")]
[InterfaceType(ComInterfaceType.InterfaceIsDual)]
public interface _EasyDAClient
[CLSCompliant(false)]
[ComVisible(true)]
[Guid("5D8A341A-863F-41D3-90D5-E88A714CF956")]
[InterfaceType(ComInterfaceType.InterfaceIsDual)]
public interface class _EasyDAClient
Example
// This example shows how to read values of a single item, and display it.

var Client = new ActiveXObject("OpcLabs.EasyOpc.DataAccess.EasyDAClient");
var value = Client.ReadItemValue("", "OPCLabs.KitServer.2", "Simulation.Random");
WScript.Echo("value: " + value);
// This example shows how to read value of a single item, and display it.

class procedure ReadItemValue.Main;
var
  Client: OpcLabs_EasyOpcClassic_TLB._EasyDAClient;
  Value: OleVariant;
begin
  // Instantiate the client object
  Client := CoEasyDAClient.Create;

  try
    Value := Client.ReadItemValue('', 'OPCLabs.KitServer.2', 'Simulation.Random');
  except
    on E: EOleException do
    begin
      WriteLn(Format('*** Failure: %s', [E.GetBaseException.Message]));
      Exit;
    end;
  end;

  // Display results
  WriteLn('Value: ', Value);
end;
// This example shows how to subscribe to changes of a single item and display the value of the item with each change.
//
// Some related documentation: http://php.net/manual/en/function.com-event-sink.php . Pay attention to the comment that says
// "Be careful how you use this feature; if you are doing something similar to the example below, then it doesn't really make
// sense to run it in a web server context.". What they are trying to say is that processing a web request should be
// a short-lived code, which does not fit well with the idea of being subscribed to events and received them over longer time.
// It is possible to write such code, but it is only useful when processing the request is allowed to take relatively long. Or,
// when you are using PHP from command-line, or otherwise - not to serve a web page directly.
//
// Subscribing to QuickOPC-COM events in the context of PHP Web application, while not imposing the limitations to the request
// processing time, has to be "worked around", e.g. using the "event pull" mechanism.

class DEasyDAClientEvents {
    function ItemChanged($varSender, $varE)
    {
        if ($varE->Succeeded)
        {
        print $varE->Vtq->ToString();
            print "\n";
        }
        else
        {
            printf("*** Failure: %s\n", $varE->ErrorMessageBrief);
        }
    }
}

$Client = new COM("OpcLabs.EasyOpc.DataAccess.EasyDAClient");
$Events = new DEasyDAClientEvents();
com_event_sink($Client, $Events, "DEasyDAClientEvents");

$Client->SubscribeItem("", "OPCLabs.KitServer.2", "Simulation.Random", 1000);

print "Processing item changed events for 1 minute...\n";
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 60);
# This example shows how to read value of a single item, and display it.

import win32com.client

# Instantiate the client object
client = win32com.client.Dispatch('OpcLabs.EasyOpc.DataAccess.EasyDAClient')

# Perform the operation
value = client.ReadItemValue('', 'OPCLabs.KitServer.2', 'Demo.Single')

# Display results
print('value: ', value)
Rem This example shows how to read value of a single item, and display it.

Private Sub ReadItemValue_Main_Command_Click()
    OutputText = ""

    ' Instantiate the client object
    Dim client As New EasyDAClient

    On Error Resume Next
    Dim value
    value = client.ReadItemValue("", "OPCLabs.KitServer.2", "Simulation.Random")
    If Err.Number <> 0 Then
        OutputText = OutputText & "*** Failure: " & Err.Source & ": " & Err.Description & vbCrLf
        Exit Sub
    End If
    On Error GoTo 0

    ' Display results
    OutputText = OutputText & "Value: " & value & vbCrLf
End Sub
Rem This example shows how to read value of a single item, and display it.

Option Explicit

Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.DataAccess.EasyDAClient")
On Error Resume Next
Dim value: value = Client.ReadItemValue("", "OPCLabs.KitServer.2", "Simulation.Random")
If Err.Number <> 0 Then
    WScript.Echo "*** Failure: " & Err.Source & ": " & Err.Description
    WScript.Quit
End If
On Error Goto 0
WScript.Echo "value: " & value
Requirements

Target Platforms: .NET Framework: Windows 10, Windows Server 2012, Windows Server 2016; .NET Core, .NET 5: Linux, macOS, Microsoft Windows

See Also

Reference

_EasyDAClient Members
OpcLabs.EasyOpc.DataAccess.ComTypes Namespace
